板材切割装备

HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯

领跑智能制作新“石”代

HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯

相关该品牌:华隆 所在区域种别:板割切法宝

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

数控石桥锯 HLNC-400+ 是一款装备可倾斜头和可倾斜任务台的数控全插补四轴桥锯,可以或许对板材和石块停止任何范例的加工、切割(直线或曲线、垂直或倾斜)、二维表面加工、铣削和二维雕镂操纵。
该机器可一次性或分步加工大理石、花岗岩、复合石材和陶瓷成品。
该机器可高度定制,因此下高产量车间的抱负处理计划:
* 厨房台面
* 打扮台台面
* 室表里墙板
* 地板
* 门阶、楼梯和门坎
* 街道家具
* 浮雕

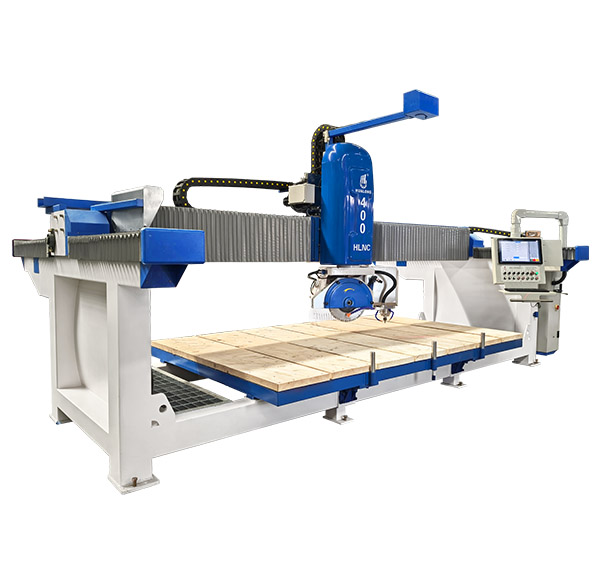

CNC Stone Bridge Saw
HLNC-400+  is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops
* vanity tops
* wall panels for interiors and exteriors
* flooring
* doorsteps, staircases and thresholds
* street furniture
* bas-reliefs

Modle No.
HLNC-400+
HLNC-650+
Diameter of saw blade
mm
ø400
ø650
Blade mitering
°
0-45
0-45
Dimension of working platform
mm
3500x2100
3500x2100
Max. cutting length
mm
3500
3500
Max. cutting thickness
mm
70
200
Max. lifting stroke
mm
250
300
Max. lifting weight by sunction cups
kg
100 x 2
100
Power of main motor
kw
15
18.8
Power of electric spindle motor
kw
5.5
5.5
Power of cutter frame reciproctating motor
kw
2
2
Power of crossbeam shifting motor
kw
1.1
1.1
Power of hydraulic station motor
kw
2.2
2.2
Power of lifting motor
kw
0.85
0.85
Gross power
kw
28.7
32.5
Water consumption
m3/h
2
2
Gross weight
kg
4500
6000
Dimensions (L x W x H)
mm
5800x3380x2770
6200x3380x3000
